WXTH-45J
Simple temperature and humidity setting; Intuitive display
- Core Advantages
- Technical Parameter
-
1. I2C communication technology.
2. The control output power supply is disconnected, and the heater (or fan) stops.
3. Temperature and humidity setting is simple; The display is intuitive.

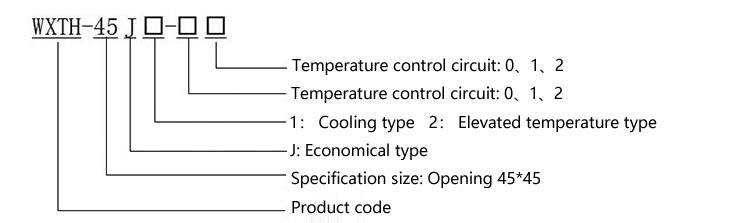

4. Low power consumption, simple structure, low failure rate, high reliability.Model nomenclature
-
Control parameters
Accuracy of measurement
Range of measurement
Output capacity
Load control
Output
Power consumption
1. Heating: Starts with a 1-second delay; parameters are configurable.
2. Fan cooling: Starts with a 1-second delay; parameters are configurable.
3. Heating dehumidification: Starts with a 1-second delay; humidity threshold defaults to 75%; temperature parameters are configurable.1. Temperature: ±1°C
2. Humidity: ±5%1. Temperature: according to the function change
2. Humidity: 0-100%1. Humidity load: AC250V 5A greater than 5A need to increase the intermediate relay
2. Temperature load: AC250V 5A greater than 5A need to increase the intermediate relayManual/automatic control
Resistive AC250V/5A, if greater than 5A, an external intermediate relay shall be connected
≤3W
