WX-ICY Integrated Intelligent Capacitor Compensation Device
Overvoltage, undervoltage, low current, harmonic out-of-limit protection
- Core Advantages
- Technical Parameter
-
1. 128 * 64 dot matrix LCD screen display.
2. Supports detection of voltage and current harmonics, along with full monitoring of three-phase voltage and current values.
3. Includes protection features such as overvoltage, undervoltage, undercurrent, and harmonic limit alarms.
4. Rated short-circuit breaking capacity: Icc = 25 kA.
5. RS485 communication, using the general MODBUS protocol.
6. Rich configuration, including 60kvar and 120kvar, etc.
7. Supports both manual and automatic operation modes:
8. Offers full protocol compatibility with standard external communication interfaces to meet the specifications of various provincial power grids.

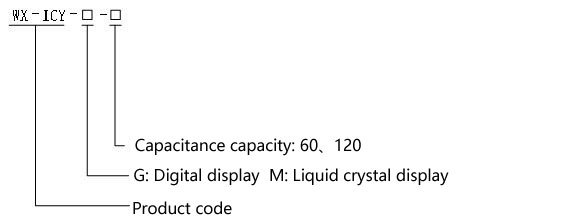

9. Integrated AI capabilities provide optimized compensation strategies, detect over- or under-compensation, and assist in capacity planning.Model nomenclature
-
AC power supply
Sampling voltage
Sampling current
Power consumption of complete machine
Adapt to the environment
(1)Rated voltage: AC400V
(2)Voltage deviation: ±20%
(3)Voltage waveform: Sine wave, total distortion rate ≤5%
(4)Frequency: 50Hz, allowable deviation ±1.5Hz(1)Rated value Un: 400V
(2)Measuring range: 0~1.2Un
(3)Measurement error: ≤0.5%
(4)Power consumption: ≤0.5VA(1)Rated value In:5A
(2)Measuring range: 0.05~1.2ln
(3)Measurement error: ≤0.5%
(4)Overload capacity: 1.2ln can work continuously
(5)Power consumption: ≤0.5VA≤5W (1)Ambient temperature: -20 °C ~ +60 °C
(2)Relative humidity: 25%~90%
(3)Altitude: ≤2000m
(4)Atmospheric pressure: 79.5kPa~106.0kPa
