WX-D2-31PG
Real-time measurement of three-phase voltage and three-phase current data
- Core Advantages
- Technical Parameter
-
1. 4-digit digital tube display.
2. With three-phase voltage, three-phase current data real-time measurement.
3. Measurement of split-phase and combined-phase active power, reactive power, apparent power, power factor, grid frequency, etc.
4. It has the function of collecting 4-channel temperature.
5. With phase and phase positive direction active energy, reactive energy, apparent energy accumulation function.
6. With power quality statistical analysis function, including voltage imbalance, current imbalance, voltage deviation, frequency deviation, etc.
7. Support 2nd–32nd order harmonic measurement and analysis.
8. Various abnormal protection in operation state, including short circuit alarm, overcurrent alarm, overvoltage alarm, undervoltage alarm, phase loss alarm, power loss alarm, harmonic over-limit alarm.
9. The working state and abnormal state can be prompted in real time through the corresponding indicator light, and can be through the local communication interface and built-in.
10. The built-in wireless 4G communication module and one-channel 485 communication circuit enable both remote and local data communication. Additionally, the built-in power storage device allows the equipment to continue operating for 30 seconds after a power failure.
11. Built-in communication protocol can provide local and remote maintenance of operating parameters and fixed value data.
12. One digital input channel and one digital output channel, which can be flexibly mapped to various system state changes or communication controls
13. With historical storage function.
14. With standard Modbus485 protocol, can be seamlessly docking with background software.
15. Extensible custom communication protocol, seamless docking with background software.

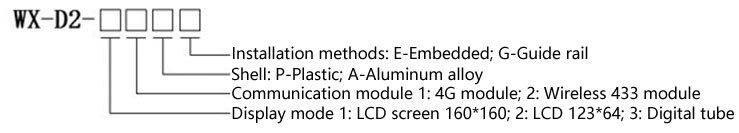

16. The built-in "Software Watchdog" circuit and fault-tolerant technology can automatically detect program errors and instantly reset the device, preventing any "crashes".Model nomenclature
-
Rated frequency
Rated voltage
Rated current
Usage power consumption
AC/DC power supply
Overload capacity of AC current circuit
Overload capacity of AC voltage circuit
20 times the rated current, measurable, allowing 1s 1.4 Times the rated voltage, allowing 10s.
Power on, power off, power supply voltage slowly rise or slowly drop, no false action or false signal, when the power supply returns to normal automatically resume normal operation.
Meet the requirements of voltage tapping without power outage and support power outage-free installation.
50Hz
3x220V
0-5A
＜2VA
AC/DC 40~220V，Allowable deviation -80%~+20%
1.2 Times rated current, continuous operation
1.2 Times the rated voltage, continuous operation
