JGX-WK380V-AG2
Low power consumption, simple structure, low failure rate, high reliability
- Core Advantages
- Technical Parameter
-
1. RJ45 network cable interface is adopted for connection and communication control mode is adopted.
2. With a new dual-terminal voltage comparison-based synchronous zero-crossing technology, it ensures zero-voltage turn-on and zero-current turn-off.
3. The re-commissioning interval is less than 5s.
4. No manual intervention, automatic networking control.
5. Low power consumption, simple structure, low failure rate, high reliability.

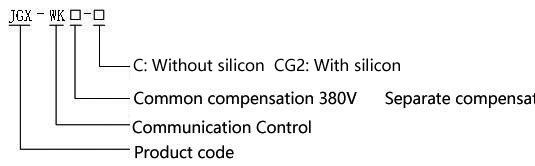

6. Control capacity 30kvar below the general, 40kvar can be customized.Model nomenclature
The JGX-WK380V-AG2 is a high-performance switching device designed for low-voltage reactive power compensation systems, offering stable and efficient capacitor switching in modern electrical networks. As a practical Composite Switch, it integrates electronic triggering and mechanical switching to achieve zero-crossing operation, effectively reducing inrush current and minimizing electrical stress on capacitors. This design helps extend equipment lifespan while improving overall system reliability and power quality. The device features low power consumption, compact structure, and strong adaptability, making it suitable for continuous industrial operation. Built with high-quality components and precise manufacturing processes, it ensures consistent performance even under demanding conditions. Widely used in power distribution cabinets, industrial automation systems, and energy-saving applications, the JGX-WK380V-AG2 provides a dependable and efficient solution for modern power management needs.
-
Control voltage
Capacity of control capacitor
Mode of control
Input inrush current
Cut off the arc
400V
≤30kvar, 40kvar can be customized
RJ45 communication
＜3Ie
None
