BWKN-3500 Dynamic Reactive Power Monitoring Terminal
Supports real-time waveform analysis, harmonic detection for voltage and current, and full monitoring of three-phase voltage and current signals.
- Core Advantages
- Technical Parameter
-
1. 128 * 64 dot matrix LCD screen display.
2. 10ms/20ms-level high-speed switching operations, enabling swift and precise compensation.3. Supports real-time waveform analysis, harmonic detection for voltage and current, and full monitoring of three-phase voltage and current signals.
4. Voltage and Current Harmonic Data & Charts: Displays 2nd to 15th harmonic data with bar/line charts.
5. Includes protection features such as overvoltage, undervoltage, undercurrent, and harmonic limit alarms.
6. Optional Features: Event alarm logging and hourly data recording.7. Scalable Outputs: Up to 24 output channels supporting cascade expansion; freely configurable compensation paths.
8. RS485 communication interface using the MODBUS protocol.。
9. Supports both manual and automatic operation modes.10.Payment reminder functionality

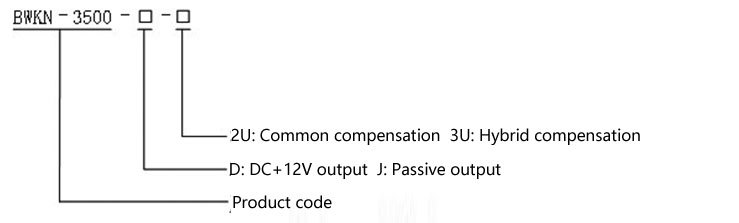

11. Integrated AI capabilities provide optimized compensation strategies, detect over- or under-compensation, and assist in capacity planning.Model nomenclature:
-
AC power supply
Sampling voltage
Sampling current
Machine power
Adapt to the environment
(1)Rated voltage: AC220V
(2)Voltage deviation: ±20%
(3)Voltage waveform: Sine wave, total distortion rate ≤5%
(4)Frequency: 50Hz, allowable deviation ±1.5HZ(1)Rated value Un: 220V/380V/690V
(2)Measuring range: 0~2Un
(3)Measurement error: ≤0.5%
(4)Overload capacity: 12.4Un can work continuously
(5)Power consumption: ≤0.5VA(1)Rated value In: 5A/1A
(2)Measuring range: 0.01~1.2ln(1A) / 0.05~1.2In(5A)
(3)Measurement error: ≤0.5%
(4)Overload capacity: 1.2ln can work continuously
(5)Power consumption: ≤0.5VA
≤15W
(1)Ambient temperature: -20 °C ~ +60 °C
(2)Relative humidity: 25%~90%
(3)Altitude: ≤2000m
(4)Atmospheric pressure: 79.5kPa~106.0kPa
